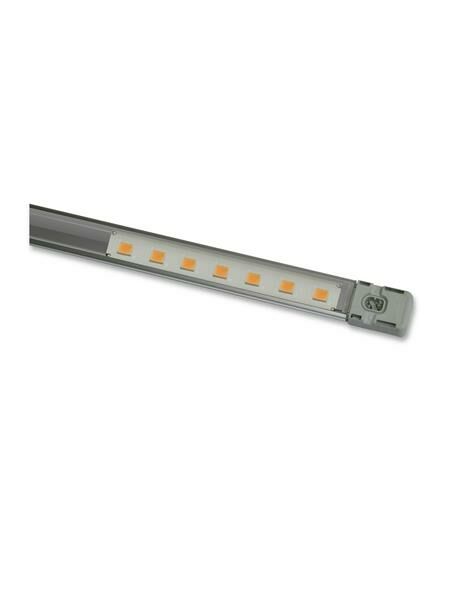

SHOPLINE
- Linear LED lighting system for refrigerated shelves, refrigerated counters and uncooled shelves
- Modular and installation-friendly lighting system consisting of an silver anodized aluminium profile
- Different LED light colours in two performance levels available
- Complete solution with „Quick Connection System“
- Installation by using mounting brackets
Technical specifications
| Light source | LED (LLM) |
| Power supply | 230V AC / 50Hz |
| LED driver | Constant voltage 24V |
| Ta max. | -30° C to 35° C |
| Risk group (LED) | EN 62471:2008 |
| Shell | Profile: Aluminium | optic: PMMA |
      |
|
| optional accessories | LED driver with dim-function (DALI or 1-10V) |
| LED light colours |      |
| performance classes | 170 mm: 2,4 W | 300 mm: 4,8 W | 600 mm: 9,6 W 900 mm: 14,4 W | 1200 mm: 19,2 W |
| LED optic | PMMA lense (clear) | 90° beam angle |
| The data provided may be subject to errors and technical modifications. | |
